Soundproofing Walls



Soundproofing is any method for decreasing the sound weight concerning a predetermined sound source and receptor. There are a few essential ways to deal with decreasing sound: expanding the separation amongst source and recipient, utilizing commotion boundaries to reflect or assimilate the vitality of the sound waves, utilizing damping structures, for example, sound confounds, or utilizing dynamic antinomies' sound generators.

Soundproofing wall materials essentially decrease both airborne sound (e.g. talking, TV, music commotion) and basic sound (e.g. stride clamour, entryways, and drawers shutting) through gathering soundproofing walls, stud divider soundproofing or inner walls. To pick up the greatest execution when soundproofing a wall we endeavour to make an autonomous divider structure that sits before the divider. Gathering soundproofing is to a great degree prominent for essentially decreasing clamour from loud neighbours, from inside one's own home or work environment and additionally to ensure that a property meets building control necessities.

The wall soundproofing framework is anything but difficult to fit all over. Various choices for party wall soundproofing are accessible from the exceptionally thin line stick on answers for the thicker and more powerful free stud structures. Wall soundproofing is at a level essentially above direction necessities.

Soundproofing walls have different exceptional quality and attribute and furthermore utilize genie clips, resilient bars, sound isolation clips and so on. Versatile Sound Isolation Clips give two special ways to deal with sound security that will keep sound from transmitting through soundproofing walls or floor/roof congregations in a multifamily development and tall structures.

The sound detachment cuts are intended for use with different confining plans and utilization of soundproofing walls. It has been acoustically tried in divider frameworks and includes the affirmation that acoustical execution will enhance radically. Sound Isolation Clips offer a very successful technique to altogether diminish structure-borne sound for soundproofing walls. The resilient bar or sound breaker bar works by decoupling the newly suspended dividers from the joists. The new wall is as a result drifting off the joists by means of lightweight folded steel bars. The sound is assimilated as it goes through the layered spine of the resilient bar.





Wall Soundproofing Solutions

Please find below many Wall Soundproofing solutions to minimise noise in your home today.

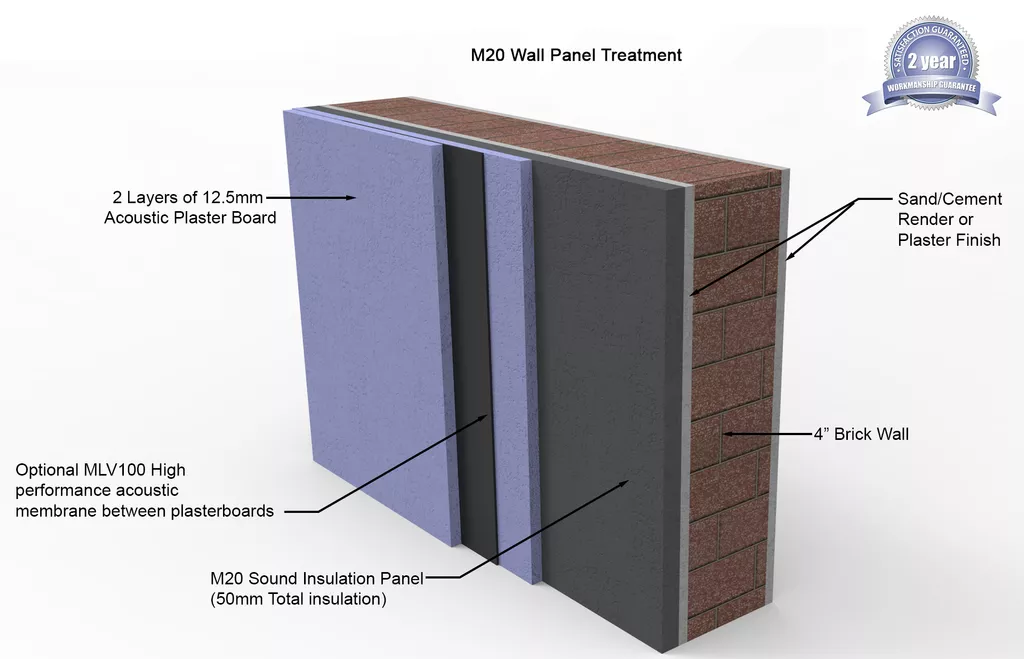

Can’t afford to lose much wall space, but still want a wall soundproofing solution that will improve on airborne noise such as conversations, TV’s and music through your wall? Then the M20 wall panel system, also known as the SS20, would be most suitable for you.

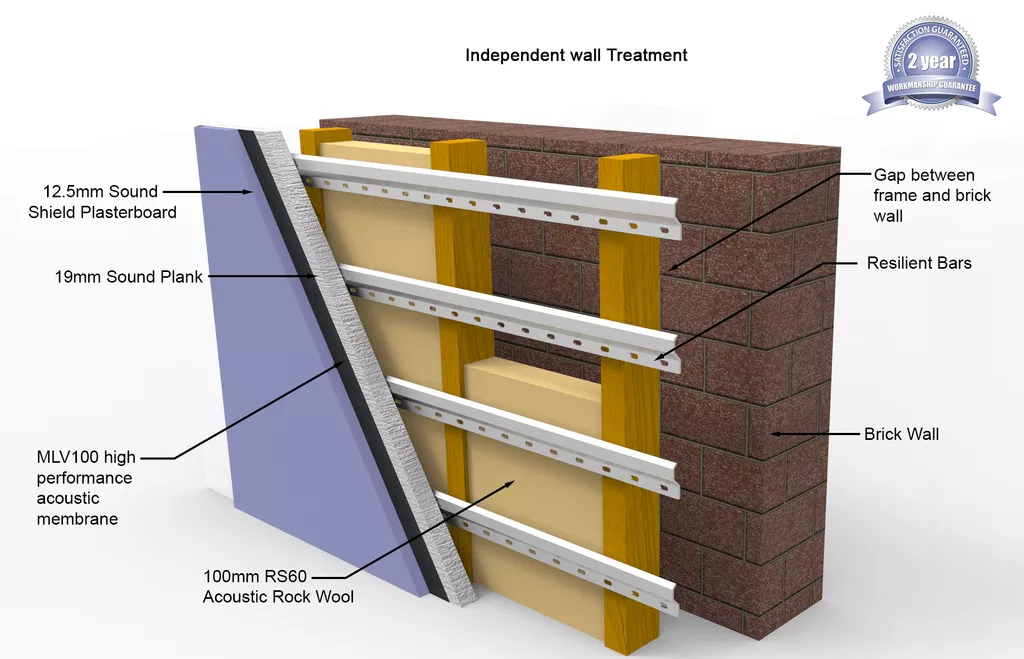

This solution gives the maximum improvement on both impact and airborne noise through your party wall when you can afford to lose some space? The new Independent wall will have no contact with the existing structure thus leaving an air-gap between the two walls.

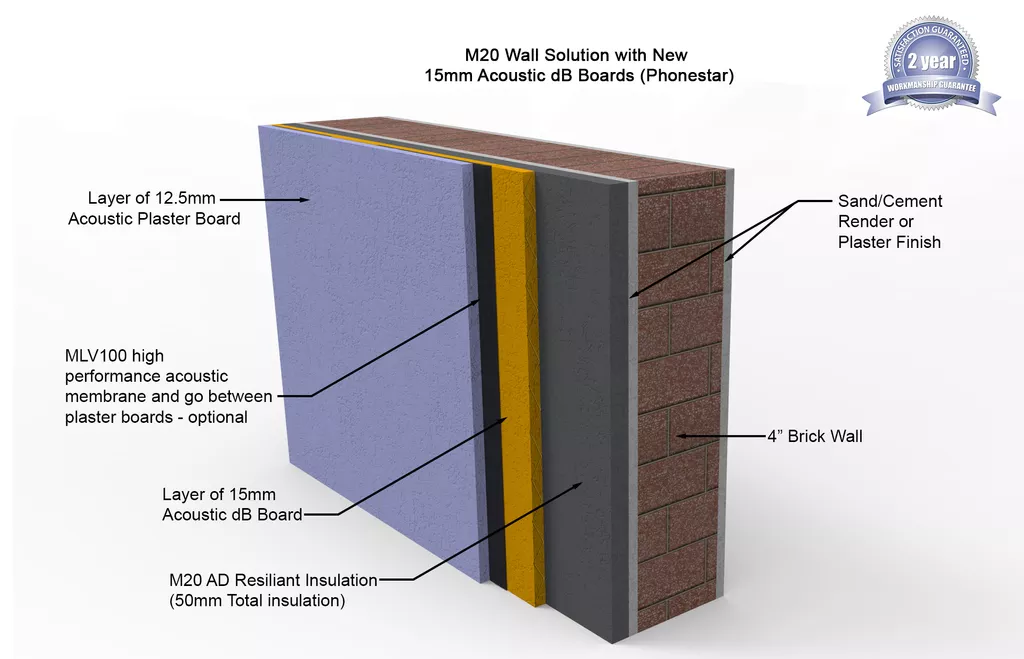

We have taken our standard M20 wall panel system to the next level. Without taking any additional wall space we have designed the thinnest but most effective party wall solution. Adding the German Engineered soundproofing boards, db boards, we have increased the improvement’s of M20 wall panel system by around 25%*.

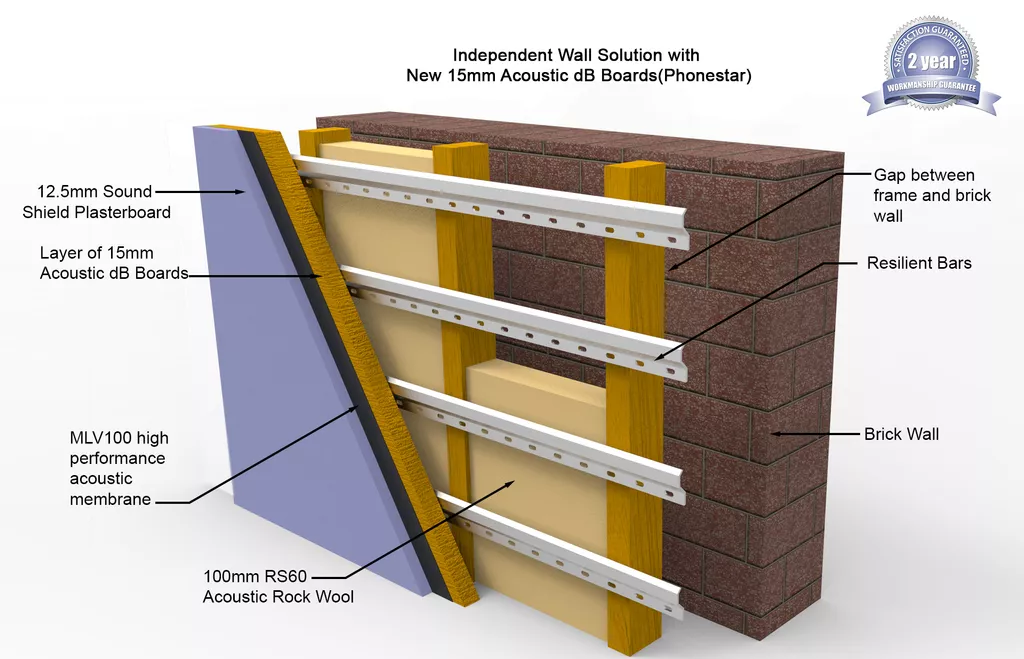

Have some space to lose and want to get the best possible improvement after installation? Our Improved version of the Independent wall solution will give you up to 75% improvement in both impact and airborne noise transference, through all types of dividing or party walls.

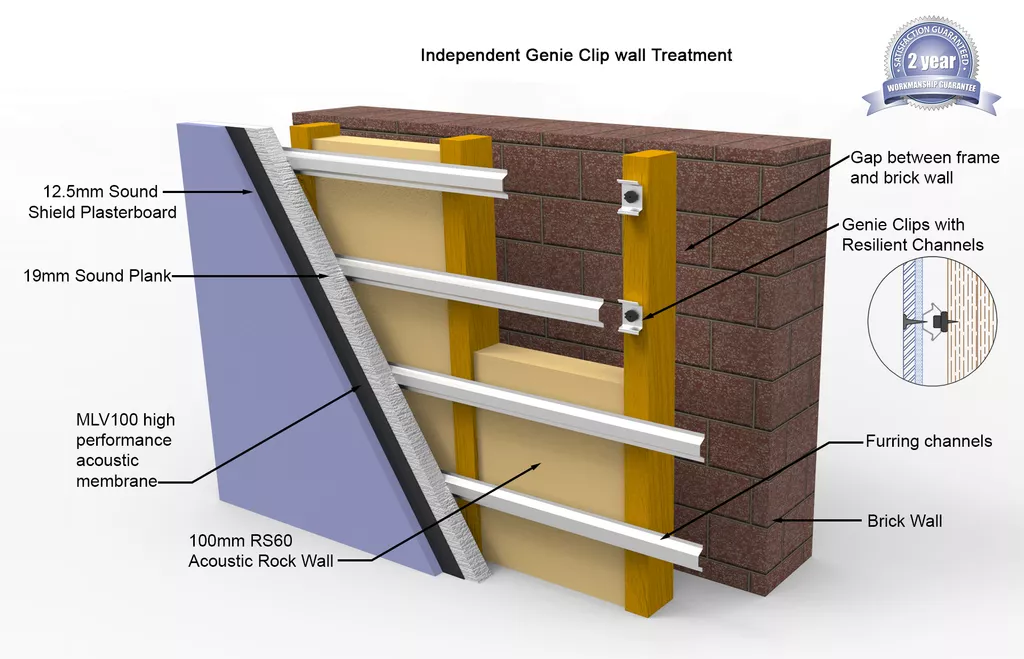

If the main issue is impact noise through your wall and having no issue with space loss in a room, then the Independent Genie Clips system would be most suitable for you. Using the Genie clips as a decoupling mechanism will give you the best possible improvement in impact noise. This solution is very popular in the music Industry for rehearsal studios and music rooms.

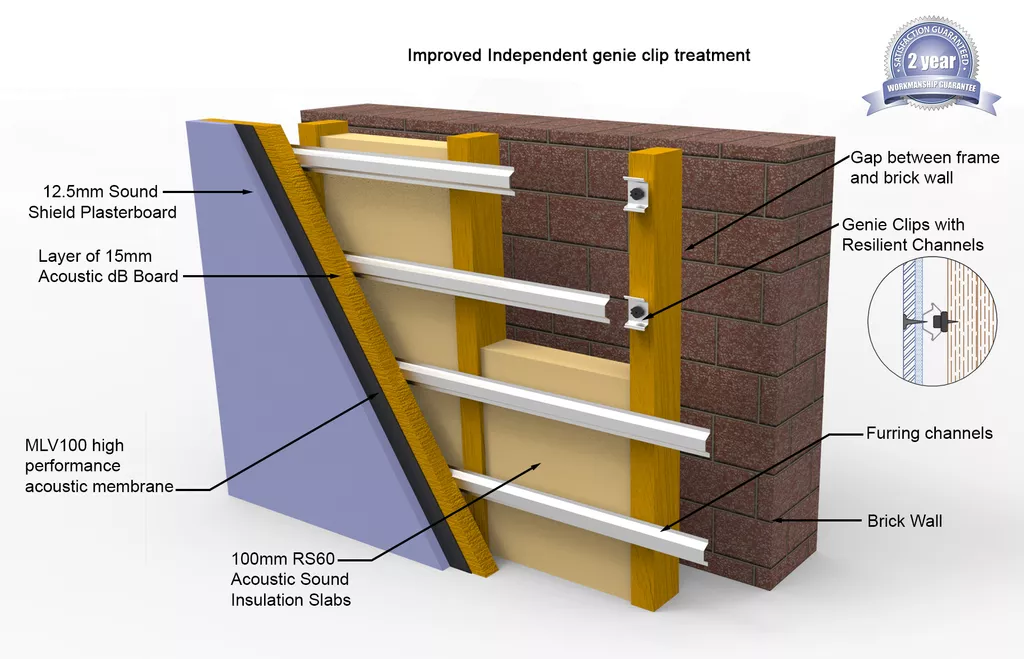

Our most effective party wall solution which will give you the maximum improvement in both impact and airborne noise. If space and cost are not an issue then installing this solution will give you the best possible improvement for any volume of noise through any dividing wall.

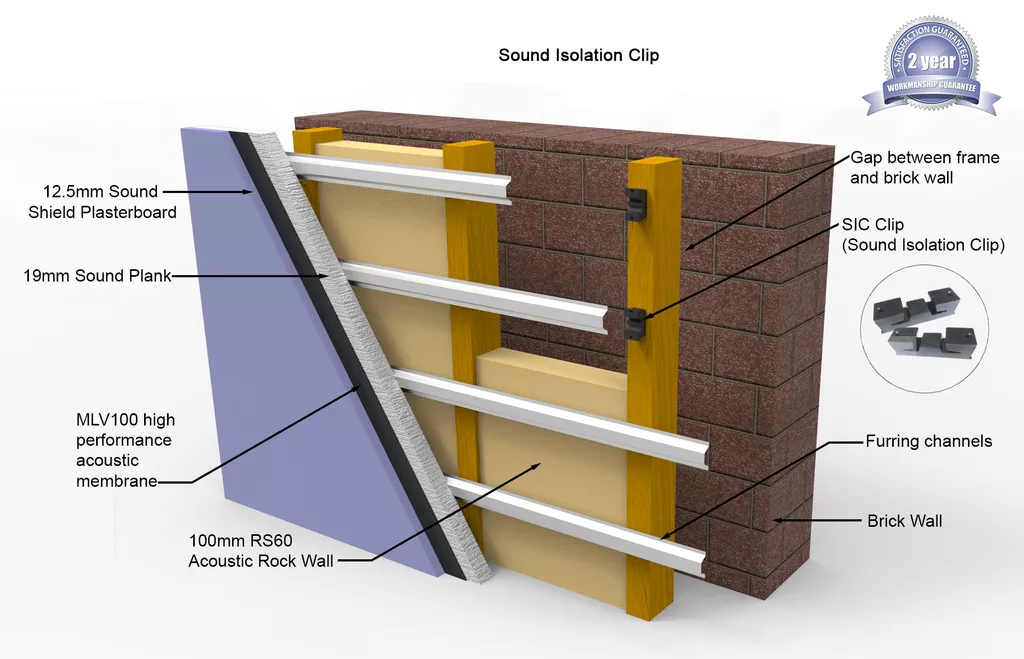

We have now redesigned the Independent wall system with our very own sound isolation clips. High-performance independent wall system with maximum improvement in both impact and airborne noise through party walls.

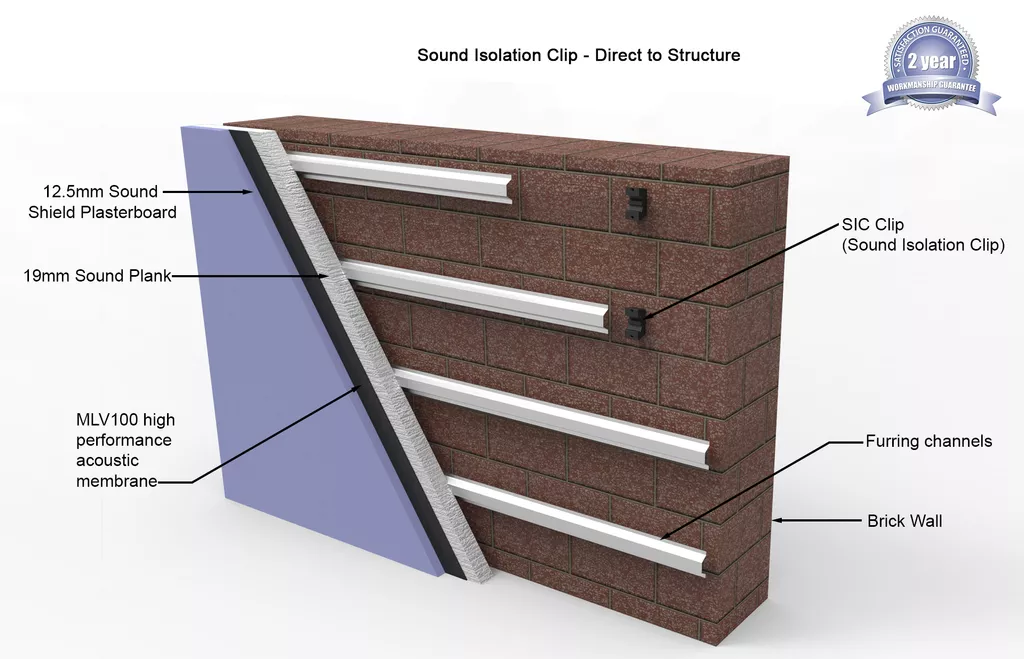

When you need to achieve high levels of improvement with both impact and airborne noise, but do not have the space to allow for an independent wall then our direct-to-wall sound isolation system would be the most suitable system for you. Easy to install to any wall construction. Upgrades all list weight block wall constructions.




Wall Solution Comparison

Solution Description Wall Space Loss Material Cost Labour Intensity Airborne Noise Improvement Impact Noise Improvement
A M20 Wall Panels 50mm High Medium 50-55% * Low
B Indpendent Wall 152mm Medium High 65% * 60-65% *
C M20 Wall Panels - Improved Version 47.5mm High High 65%+ Low
D Independent Wall - Improved Version 150mm High High 70% * 70% *
E Genie Clip - Independent Wall 195mm High High 70% 70%
F Improved Genie Clip - Independent Wall 190mm High High 75% 75%
G Sound Isolation Clip - Independent Wall 50mm High High 70% 70%
H Sound Isolation Clip - Direct to Wall 50mm Medium High 65% 65%

*above results are averages achieved on various installations through the UK. We cannot guarantee the exact same of improvement on every installation carried out.



Upgrade

All the above systems can also be further upgraded with various soundproofing products to achieve a higher level of noise reduction after installation:

  • MLV100
  • MLV50
  • Green Glue
  • 15mm Db Boards
